MagnetDB a platform for the simulation of High Field Magnet
Overview
At MT28 We present a platform, MagnetDB designed to simplify and automate the simulation of high field magnets. The simulation available range from semi-analytical model for the magnetic field in the user experimental zone to multi-physic finite element model. The system architecture is composed of a web front-end with a python back-end that interact with a database containing a formal description of our magnet derived from our operating mode. The system focus on resistive magnets. We give an overview of the system with a focus on the templating engine to generate files for simulations setup. More advance use of the system with a python command line interface module is explored.

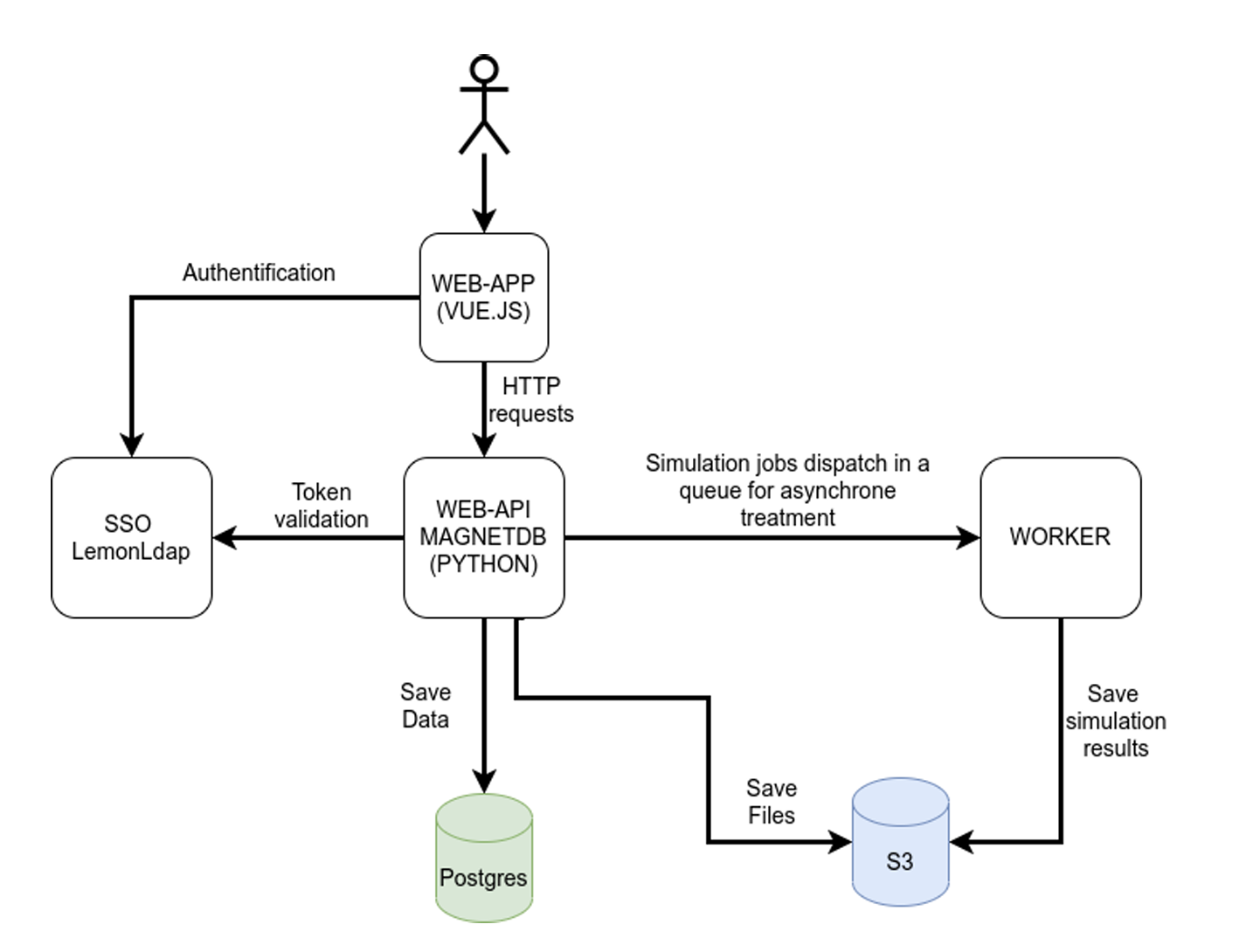

- MagnetDB Architecture

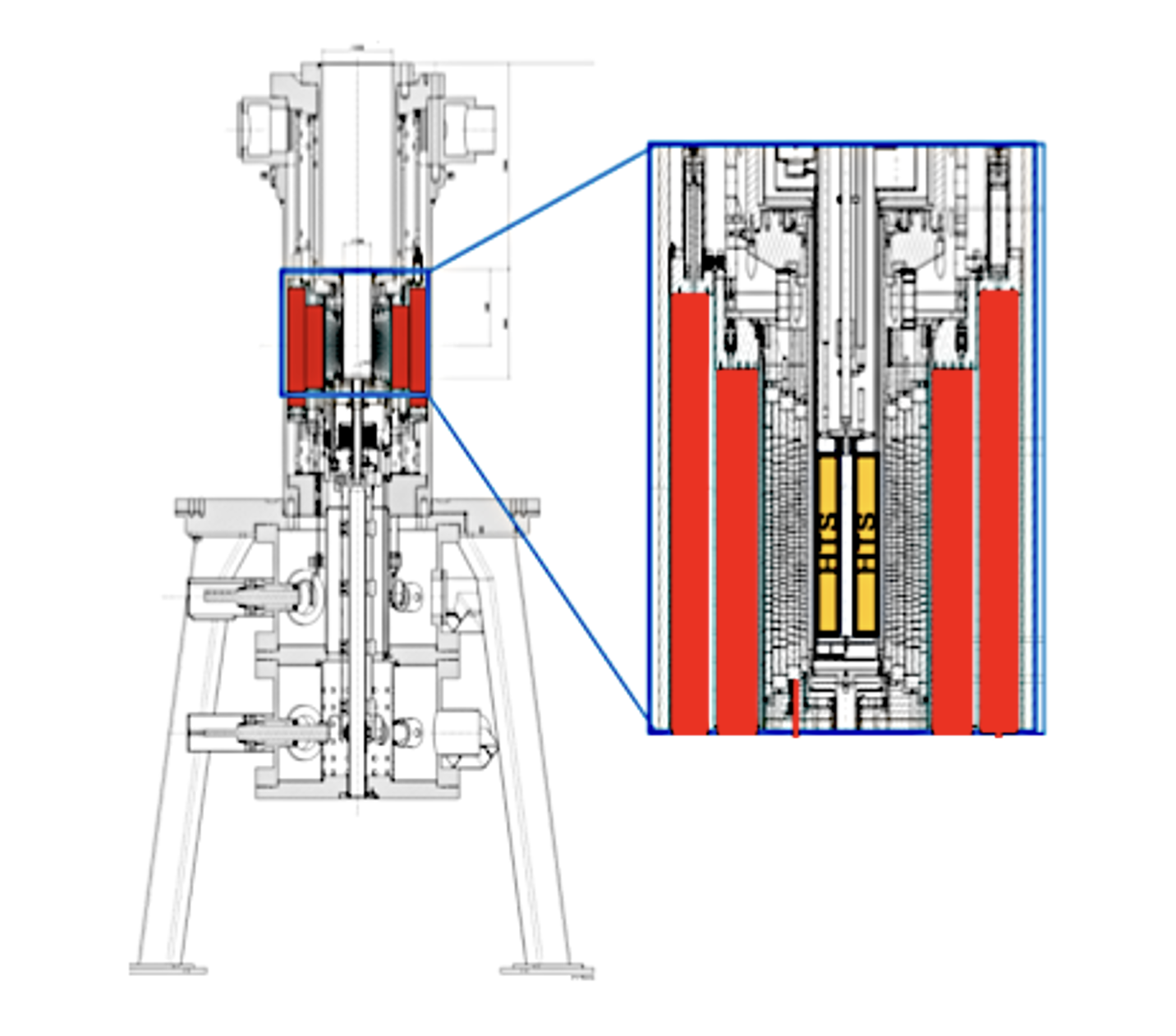

- Cut View of an experimental site: in MagnetDB terminology, the site is composed of an HTS magnet in "orange", a poly-helices magnet in "gray" and Bitter magnet with two parts in "red". Poly-Helices magnet is a specific technology of LNCMI.
Reference
Check out the paper on the HAL CNRS Portal
